Jegs 80639 Ball Joint Service Kit

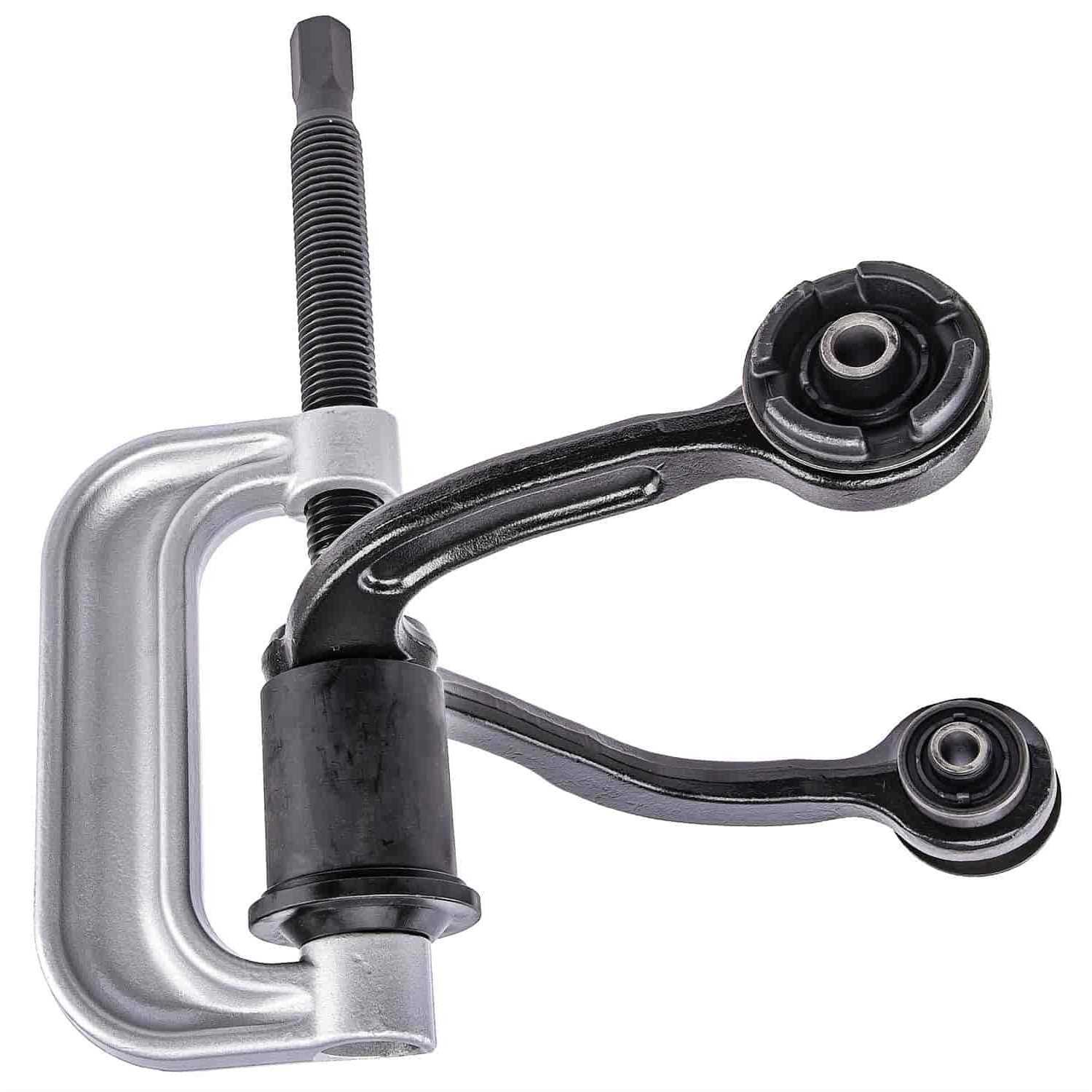

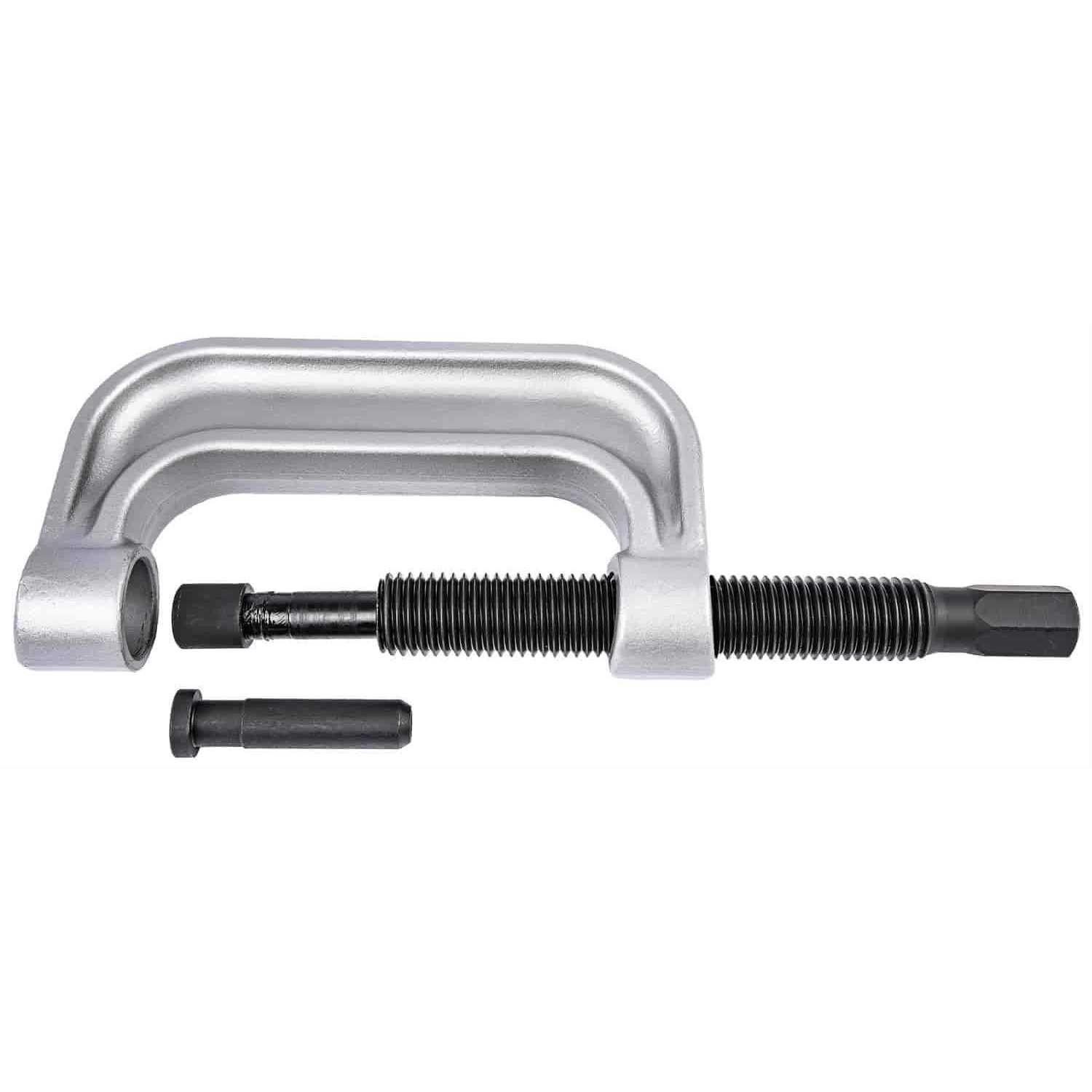

Remove/Install Ball Joints, Brake Pins, and… Construction:… Includes: (1)… – Construction: Steel – Includes:(1) C-Press(1) Short Pin(7) Receiving Tubes(3) Adapters(8) Cups(1) Carry Case Parts Breakdown JEGS 80639Make removing and installing press-fit ball joints, drum brake pins, and u-joints easy with the ball joint service kit from JEGS. With a range of tubes, adapters, and cups, designed to fit with the included c-press, you can complete most jobs in the comfort of your garage.FeaturesRed plastic blow-molded case securely holds each part in its specific location – Designed for press-fit ball joints, will not work with the bolt-in type – Fits 1210 series and larger u-jointsMeasurementsC-PressOpening dimensions: 6 1/8 in. L x 2 1/8 in. DThreaded rod: 9 1/8 in. L x 1.120 in. DBolt head: 7/8 in. Through opening inside diameter: 1.260 in. – Adapters Adapter 1Side 1 dimensions: 1.720 in. D, 2.230 in. D, 2.720 in. D Side 2 dimension: 0.865 in. D (Fits C-press threaded rod)Inside diameter: 0.945 in. Adapter 2Side 1 dimensions: 2.225 in. D, 2.720 in. DSide 2 dimension: 0.865 in. D (Fits C-press threaded rod)Inside diameter: 0.0515 in. Adapter 3Outside diameter: 1.435 in. – Stepped flange diameter: 1.220 in. (Fits C-press bottom opening)Inside diameter: 0.815 in.CupsCup 1:Dimensions: 2 7/8 in. L x 2 in. ODInside diameter: 1.800 in. – Internal depth: 2 3/8 in. – Bottom opening diameter: 0.235 in. Cup 2:Dimensions: 3 5/8 in. L x 2.500 in. ODInside diameter: 2.165 in. – Internal depth: 3 1/8 in. – Stepped flange dimensions: 2.465 in. OD x 1 in….
